Libero Micro frame
19.90$ – 20.90$

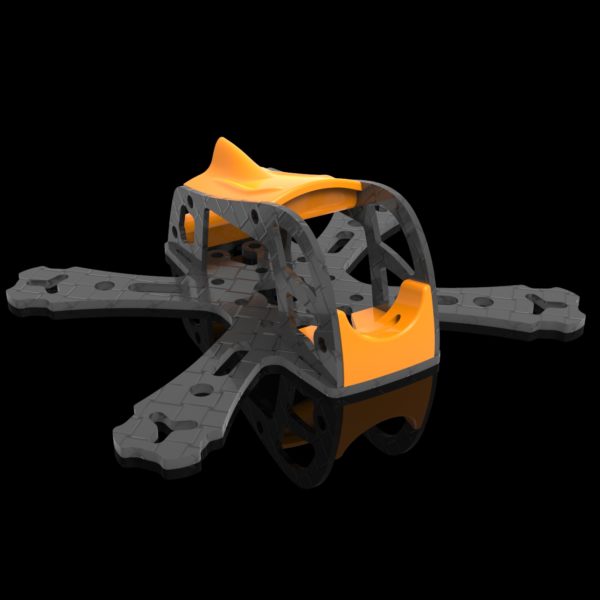

QuattroVolante Libero Micro
1.5mm thick 3K Carbon fiber main plate, 1mm cf side panels
FC TPU mount included for smooth, vibrations free, flights
Suggested brushless motors: 0705 15000KV with 40mm propellers and 1S battery (280-400mAh)
The kit is designed and optimized to use 20mm (16x16mm holes) fc and same size 4in1 esc
Maximum size for propellers is 40mm
The version for 11xx motors can spin up to 1.9″ propellers
Fits small AIO cameras (max 16.5x9mm)
Using the recommended parts, AUW should be around 28 grams
Carbon fiber prop guards are available here
Motors and electronics not included
Additional information
| Weight | 21 g |
|---|---|
| Color | Black, Green, Orange, Red, White, Yellow |
| Hole pattern | 0703/05, DYS 0905, 11xx (larger props) |
| Side panels | Standard, Higher |
1 review for Libero Micro frame
You must be logged in to post a review.
Related products
-
Softmounts for 0703/0705 motors
3.00$ Select options This product has multiple variants. The options may be chosen on the product page -
Libero Micro CF prop guard set
10.00$ Select options This product has multiple variants. The options may be chosen on the product page -
Libero Micro 2S BNF Extreme
139.90$ – 179.90$ Select options This product has multiple variants. The options may be chosen on the product page
Michael –
I bought my first one fitting DYS 0905 motors at least a year ago.. I liked it so much I bought another fitting 1103 motors. The second one also fits a 1.9 inch prop as well…
That makes it the smallest “2 inch” quad on the planet!!!!
Seriously my buddies call it a keychain quad!!! It flies fantastic for the size!! Even the 0905 model fitting 40mm props max flies absolutely fantastic!! It punches like Mike Tyson too!!!
I had only used the Teeny F4 pro with just a 5 Amp ESC on board.. With the 1.9 inch prop model, it would be even more amazing with a modern 12 amp ESC in it’s place.. There are several new ones that would fit easily… The I-Flight Micro SauceX stack even has a blackbox and 25-200mw TX.. For around $40 you can’t go wrong..
